Silent Messenger

Full-Size Message Board

Trailer type

Display

Get a Quote See Full Specifications

5-year warranty guaranteed.

Size & Weight

Panel Size

76″ x 126″

Character Size

5 x 7 pixels

Pixel Pitch

2.6″

Length Overall

186″

Width Overall

92″

Height (Transport Position)

103″

Height (Operating Position)

164″

Ground Clearance

13″ minimum

Weight

2,900 lbs. minimum – 3,500 lbs. maximum

Lifting Mechanism

2,000 lb. capacity electro-hydraulic

Display

Characters per Line

Eight

Number of Lines

Three

Number of Fonts

One

Power

Solar Array

160 watts

Batteries

Four (4) 6-volt heavy-duty, deep-cycle (GC 2)

Protection

Battery Security

Anti-theft steel battery frame bolted to trailer

Remote Communications

Talk to your Board! Remote access, GPS tracking, and FREE lifetime cellular service.

Brakes

Hydraulic Surge, 5,000 lb. capacity
Electric

Battery Upgrades

Lead-Acid (flooded): Six (6), 780 amp hour
Lead-Acid (flooded): Eight (8), 1040 amp hour
Lead-Acid (flooded): Ten (10), 1300 amp hour
Lead-Acid (flooded): Twelve (12), 1560 amp hour
Gel Cell or AGM (maintenance-free): Four (4), 520 amp hour
Gel Cell or AGM (maintenance-free): Six (6), 780 amp hour
Gel Cell or AGM (maintenance-free): Eight (8), 1040 amp hour
Gel Cell or AGM (maintenance-free): Ten (10), 1300 amp hour
Gel Cell or AGM (maintenance-free): Twelve (12), 1560 amp hour

Battery Charger

45 amp output (120 VAC 50/60 Hz input)
55 amp output (120 VAC 50/60 Hz input)
100 amp output (120 VAC 50/60 Hz input)
55 amp output (230 VAC 50 Hz input)

Battery Security

Vandal-proof battery box reinforced steel cage

Solar Array

220 watt
270 watt (with MegaTech Controller upgrade)
330 watt (with MegaTech Controller upgrade)
440 watt (with MegaTech Controller upgrade)
490 watt (with MegaTech Controller upgrade)

MegaTech Controller Option

Touchscreen controller with a simple one-page user interface. Password protection: ability to assign up to 50 passwords with levels of access.

Radar Speed Detection

Camera

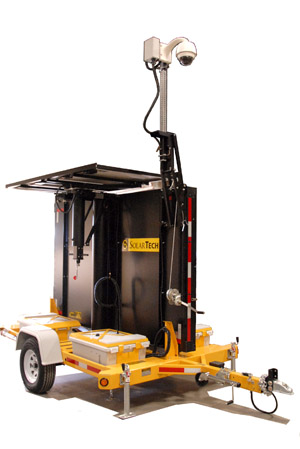

A camera that extends above the board to monitor traffic, raised to nearly 20 feet above the ground. Useful in smart work zones: with real-time traffic information from the camera, transportation officials can customize messages to warn motorists about what is actually happening ahead.
Boards with a camera also include a tilt and rotate solar array.
To customize the messages via Command Center, the board needs the remote communications option enabled. Camera image transmission needs a separate modem and cell service. Manufacturer’s warranty applies.

What makes our message boards different?

Built to Deliver Value for Decades

Many customers continue operating and generating revenue from 15-20-year-old SolarTech message boards thanks to long-term parts availability, repairability, and durable construction.

Designed for Easy Troubleshooting & Repairs

Pixel-level diagnostics identify problems quickly, and tool-free display modules can be replaced in the field without bringing the trailer back to the shop.

Configure It Your Way

Choose from numerous display type, battery bank size, solar array size, doplar radar, camera, various ITS sensors, and communications. Control locally, remotely, by schedule, or through Command Center.
