Silent Navigator

Connected Work Zone Marker

Get a Quote See Full Specifications

5-year warranty guaranteed.

Size & Weight

Height

4.625 in.

Length

6.25 in.

Width

8.25 in.

Weight

1.89 lbs.

Details

Solar Array Output

1.75 W

Battery Voltage

12 V

Run Time

Unlimited under normal solar conditions; never needs recharging or a battery replacement

Life Expectancy

10+ years

First Check-in

1 minute after power-up

Reporting Interval

Every 30 minutes

GPS Accuracy

±15 ft. (±4.6 m)

Cellular Service

4G, free for the life of the device

Temperature, Operating and Storage

-40 to +185 °F

Relative Humidity

20% to 98%, non-condensing

Additional Features

Simple ON/OFF toggle switch
Work Zone Data Exchange (WZDx) compatible
One device can be used to set up multiple virtual location sensors on a job site
Create custom reporting and roles in SmartZone (i.e. function as a Lane Closure Device)
Set up automatic alerts and notifications in SmartZone

Versatile Deployment

Secures To

Traffic cones
Construction barrels or drums
Concrete barriers
Static construction signage or posts
Construction vehicles or trailers

The Silent Navigator is a rugged, portable, solar-powered connected marker that transmits specific, location-based work zone events: the start and end of lane closures, lane shifts, and work zones. It is built on SolarTrak technology, but it is not meant to track moving operations or moving equipment.

It is designed primarily to send notifications to navigation applications such as Waze, and to provide Work Zone Data Exchange (WZDx) feeds that can flow into DOT traffic management systems and statewide feeds for public reporting. It also integrates with our SmartZone ITS (Intelligent Transportation Systems) software.

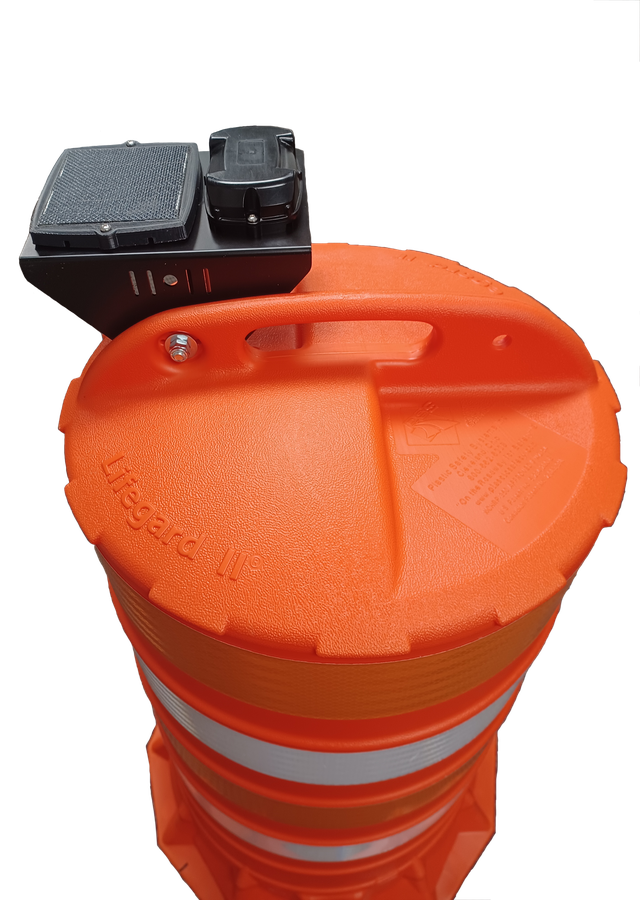

The Silent Navigator is not crash tested. We recommend deploying it on posts or equipment outside of the traveled way. A piece of 2x2 perforated tubing, a standard sign post often used in work zones, works well: drive it into the shoulder and mount the marker on it.

What makes our ITS sensors & markers different?

Work Zone Locations Drivers Can See

Silent Navigator shares work zone boundaries through WZDx-compatible feeds to 511 and navigation apps to warn drivers before they reach the work area.

Installation in Minutes

Mount to poles, barrels, equipment, signs, or existing infrastructure without deploying another trailer.

Always-On Monitoring

Solar-powered operation, GPS connectivity, and cellular communications provide ongoing speed, location, and traffic information with minimal maintenance.
