Arrow Boards
Trailer-mounted traffic direction.
Frequently asked questions
What sizes do SolarTech arrow boards come in?

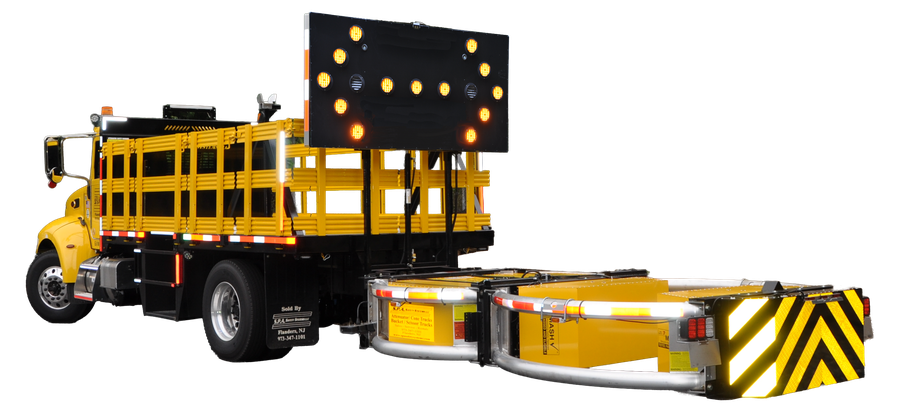

The Standard and the ECO Silent Sentinel trailer mounted arrow boards come standard with a Type- C arrow panel that is 48” tall x 96” wide and equipped with either 15 or 25 LED lamps. Vehicle Mounted Silent Sentinel arrow boards are available in three standard sizes: Type-C (48” x 96”), Type-B (36” x 72”) or Type-B (30” x 60”) with each size available with either 15 or 25 LED lamps.
How are SolarTech arrow boards powered?
Silent Sentinel trailer mounted solar powered arrow boards are powered by a deep cycle battery bank that is recharged by the solar array. The Standard Silent Sentinel trailer mounted arrow boards come standard with two (2) 6-volt heavy-duty deep-cycle (GC-2) batteries and a 50-watt solar array. The Silent Sentinel ECO trailer mounted arrow boards come standard with two smaller AGM type batteries concealed in the trailer frame and a 50-watt solar array. Both models are available with additional batteries and/or larger solar arrays to accommodate geographic regions with reduced sunlight such as in higher norther latitudes. Vehicle Mounted Silent Sentinel arrow boards can be powered directly from the vehicles 12 (or 24) volt DC electrical system, or they can be equipped with optional battery banks and solar arrays to function for long periods of time without depleting the vehicles battery if the vehicle is left parked and not running for extended periods of time. Additionally, you can control the arrow panel locally with the on-board controller or if equipped with the optional communications package, remotely via Command Center or automatically in a smart work-zone using SmartZone.
What is the difference between the Standard and ECO arrow boards?

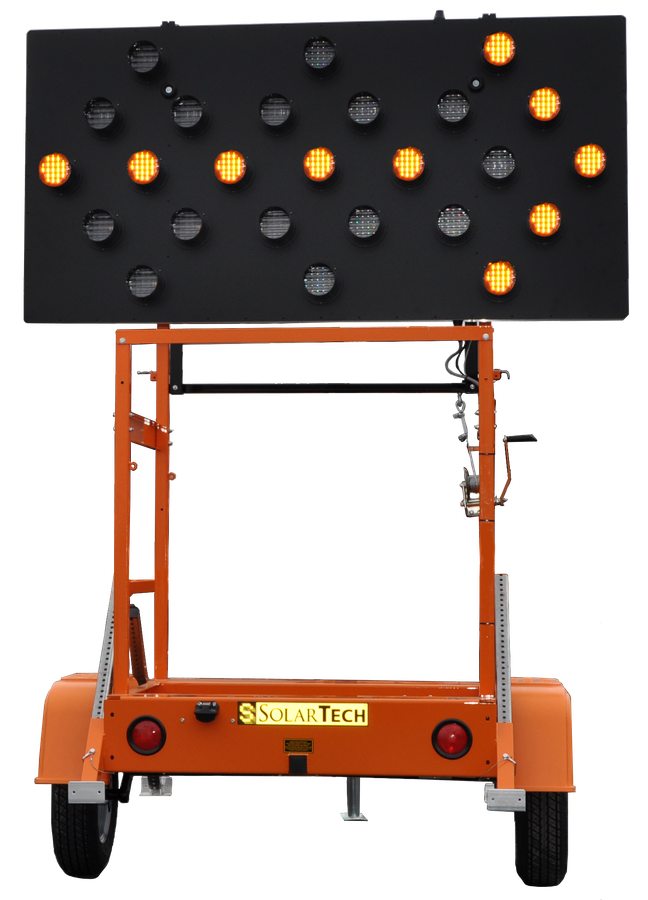

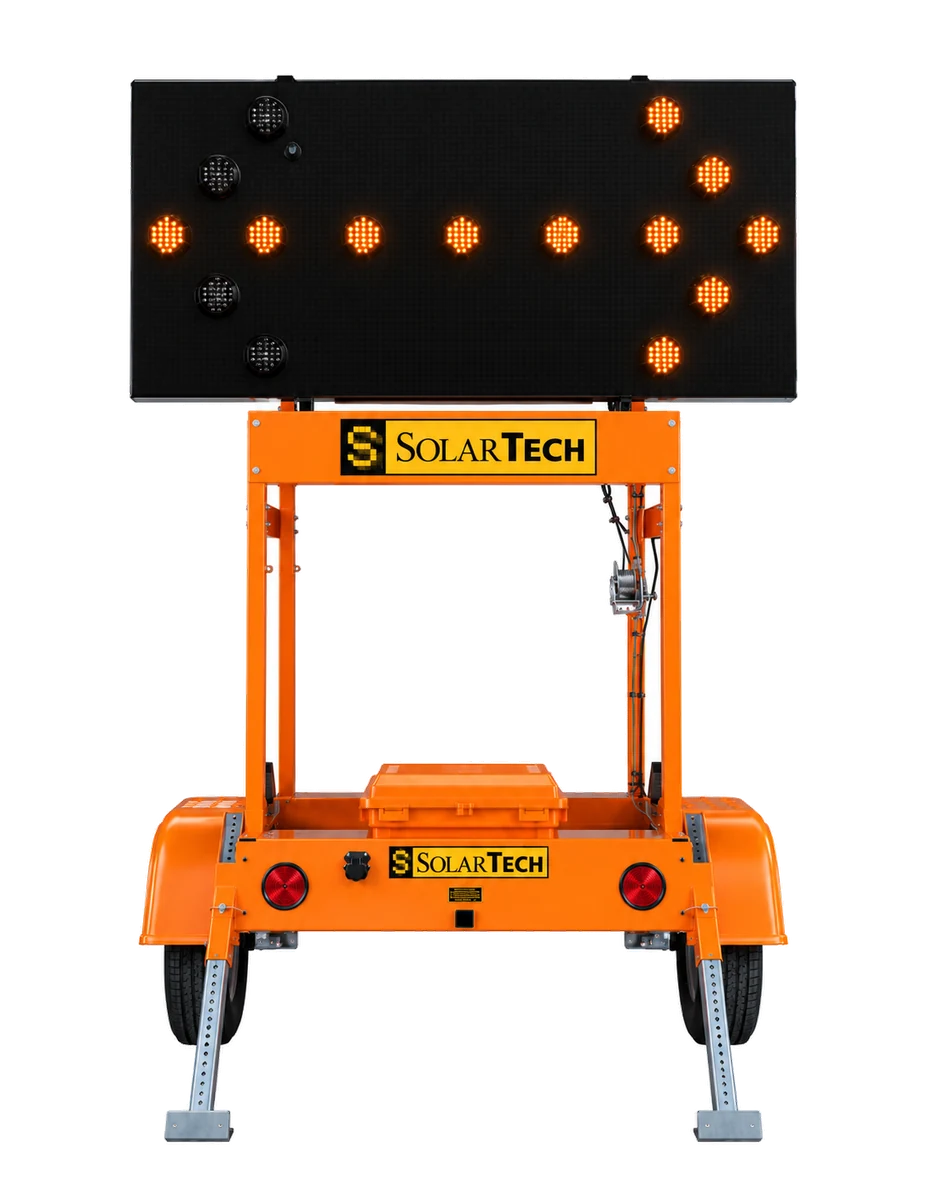

The Standard Silent Sentinel trailer mounted solar powered arrow board uses two (2) BCI Group GC-2 batteries mounted inside an HDPE plastic battery box with an anti-theft steel battery frame bolted to the trailer. The controller is also located inside the battery box with the main battery bank. The ECO Silent Sentinel trailer mounted arrow board uses 2 smaller AGM type batteries concealed inside the trailer frame with the controller mounted up on a side member just below the arrow panel. Both are available in either 15 or 25 lamp configurations with a wide array of upgrades including larger battery banks, larger solar arrays and cellular connectivity with GPS for remote tracking, monitoring and control via WebSuite.
What warranty covers a SolarTech arrow board?
ALL SolarTech products are backed by a 5-year “bumper-to-bumper” warranty. Additionally, exclusive to the Silent Sentinel line of arrow boards, the sealed LED lamps carry a separate 10-year warranty.
Can I monitor and control an arrow board remotely?
Yes. All connected SolarTech Silent Sentinel arrow boards can be tracked, monitored and controlled remotely through WebSuite when equipped with the optional communications package. This upgrade provides lifetime remote tracking, monitoring and control with no additional monthly fees and removes site visits for routine pattern changes.
Can I repair an arrow board in the field?
Yes. All SolarTech Silent Sentinel arrow boards use field-repairable components including stainless fasteners and quick-disconnects for the LED lamps and controllers.
