Silent Sentinel

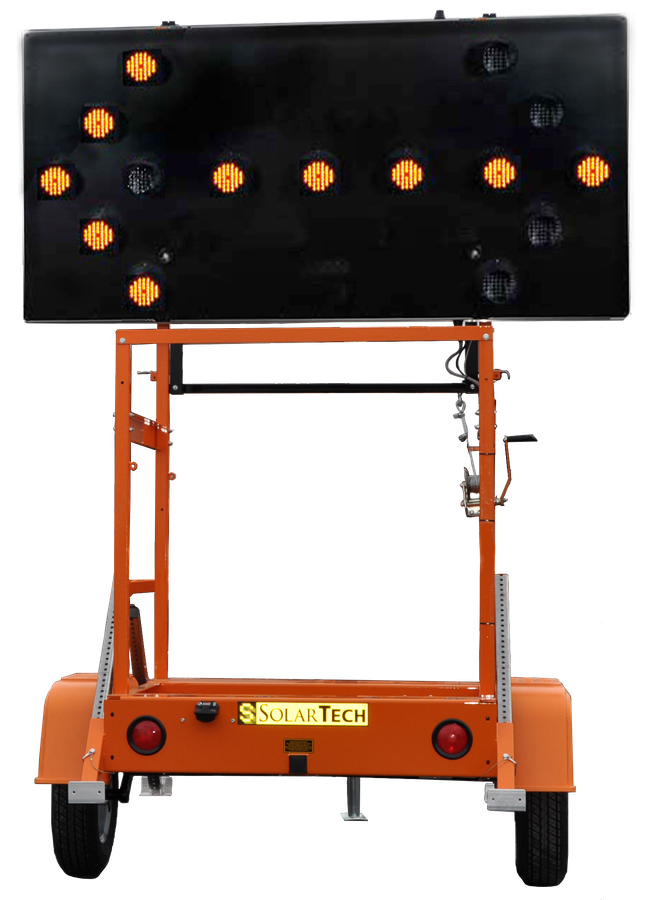

ECO Arrow Board
Size
Size & Weight
Panel Size
48″ x 96″
Length Overall
111″
Width Overall
96″
Height (Transport Position)
92″
Height (Operating Position)
137″
Ground Clearance
13.5″
Weight
1,200 lbs.
Lifting Mechanism
1,000 lb. capacity (minimum) automatic brake winch and cable
Display
Lamps
LED – 15
Power
Solar Array
- 50 watts (AB-0515)
- 110 watts (AB-0715)
Batteries
Two (2) AGM, concealed in frame
Remote Communications
Remote access and GPS tracking available in models with four (4) or more batteries. Lifetime cellular service available in US only.
Battery Upgrades
- Four (4) maintenance-free AGM
- Six (6) maintenance-free AGM
- Eight (8) maintenance-free AGM
Auxiliary Battery Chargers
- 5 amp, 120 volt AC line-powered
- recharges batteries in less than 24 hours in the 2, 4 and 6 battery models and in less than 36 hours in the 8 battery model
Brakes
Electric Brakes
What makes our arrow boards different?
Monitor and Control Without a Site Visit
Connected Smart Arrow Boards can be monitored and controlled remotely through WebSuite, eliminating trips to the work zone for routine pattern changes. All connected arrow boards include lifetime communications reducing recurring cellular costs, while the SolarTech compass provides orientation reporting for added visibility.
Built for Long-Term Ownership
Heavy gauged steel trailer construction, a 5-year trailer warranty, 10-year LED warranty, and field-repairable components help keep boards operating for years instead of being replaced. Stainless fasteners and quick-disconnect lamps make repairs fast and straightforward.
More Reliable Lighting, Smoother Towing
Sealed LED lamps backed by a 10-year warranty dramatically improve reliability and significantly reduce maintenance and repair costs. A torsion-spring axle adds independent wheel movement and a lower-profile suspension design, helping the trailer tow more smoothly over uneven roads and jobsites while improving ground clearance and reducing exposed suspension components compared with traditional leaf-spring designs.
