Silent Sentinel

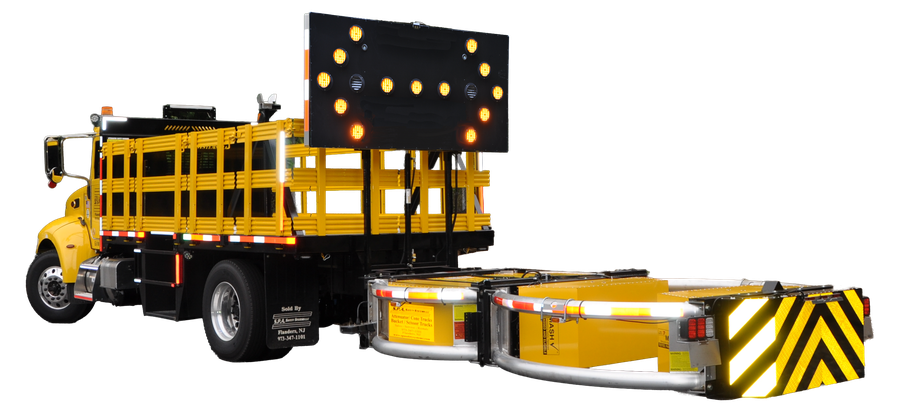

Vehicle-Mounted Arrow Board
Panel size
Size
Size & Weight
Panel Size
30″ x 60″
Display
Display Type
15 Lamp – Type B
Mount Types
- Fixed mount: the sign mounts flush to the vehicle and does not fold
- Center pivot mount: our most economical mount, the sign pivots at the center of the crossbar
- Low profile pivot mount: available for 30″ x 60″ and 36″ x 72″ arrow boards, the sign folds compactly
- Pivot mount: our most versatile mount, used on any vehicle and accepts a wide variety of signs
Base Options
- Skid: available in various heights
- Bed rail: adjustable to fit any pickup truck bed rail with a 55 – 72″ width
Vehicles
Crash attenuators on trucks or trailers, pickup trucks, dump trucks, stake body and flat beds, utility vehicles
Power
Power
Battery power from the vehicle, or dedicated batteries. Manual or powered operation. Optional solar panels.
Display Type
15 or 25 Lamps Type B or Type C
Mounts
Multiple mounting options (universal, pivoting, over-cab, skid, bed-rail, etc.)
Installation Kits

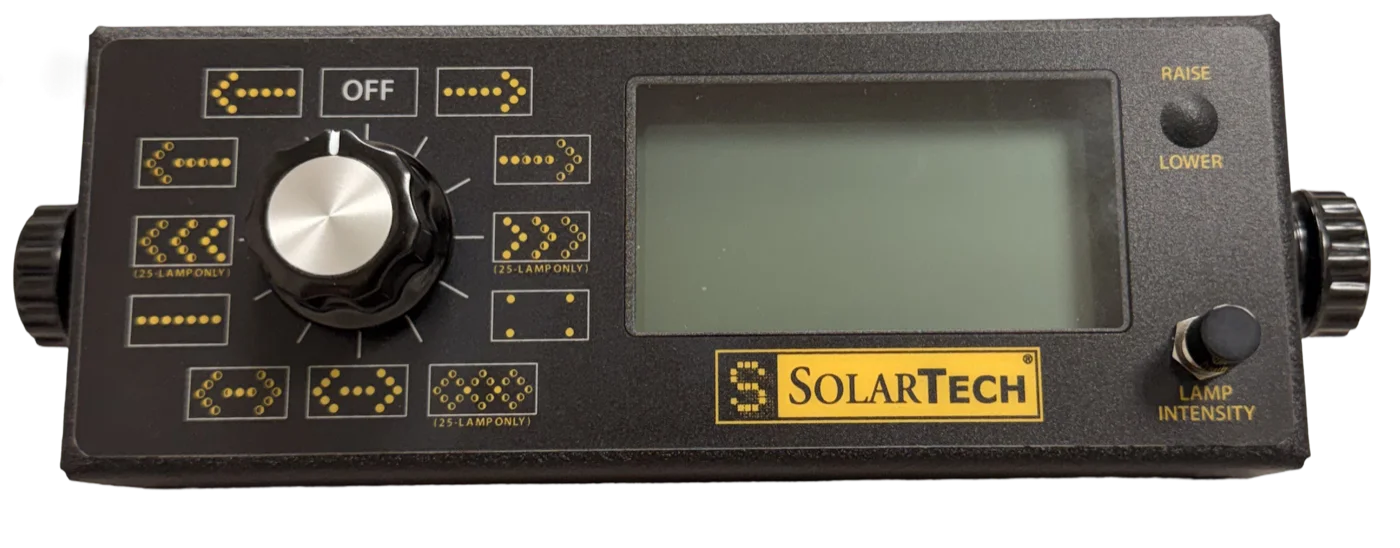

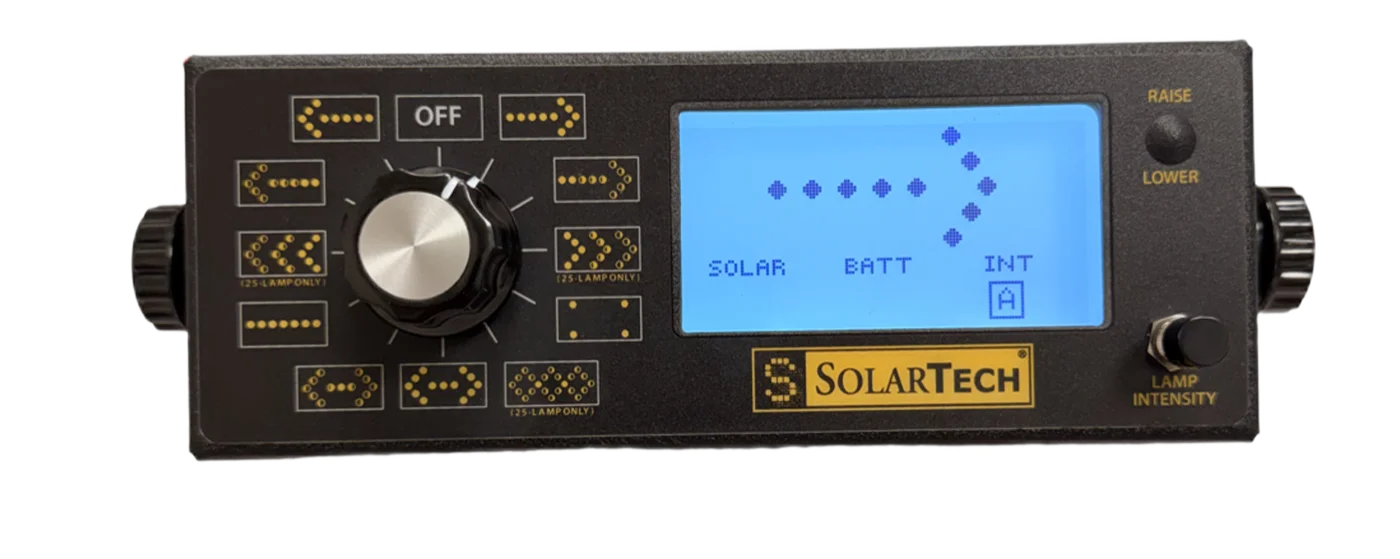

Self-contained portable or integrated, in-cab controls (wireless controller or compact remote)
Lifts
Manual or powered
Battery Packs
Auxiliary battery pack (300/600 AH) Lead Acid or Gel-Cell
Battery Charge
- 45 amp 115 volt
- 45 amp 230 volt
Solar Array Upgrades
- 50 watt array for Arrow Panels
- 100 watt array for Message Boards
- 150 watt array for Message Boards
Other SolarTech Products
Standard Arrow Board
Vehicle Mount Message Board

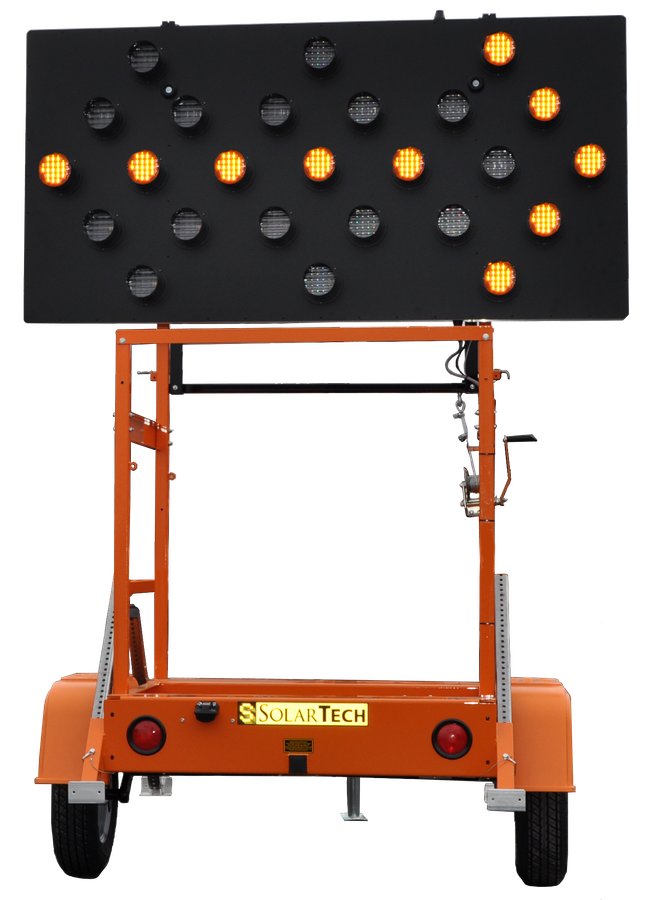

ECO Arrow Board
